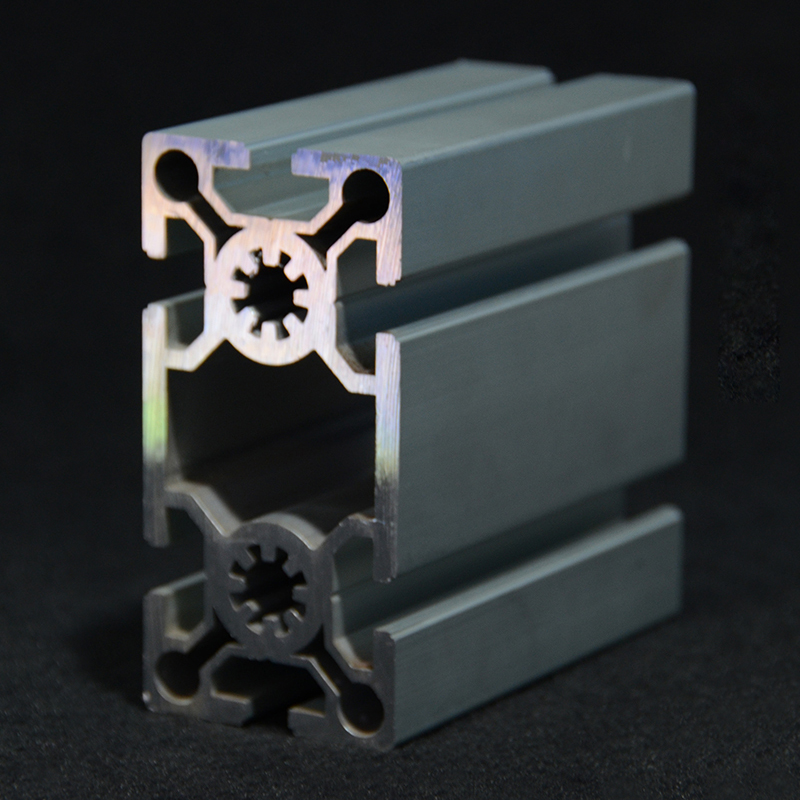

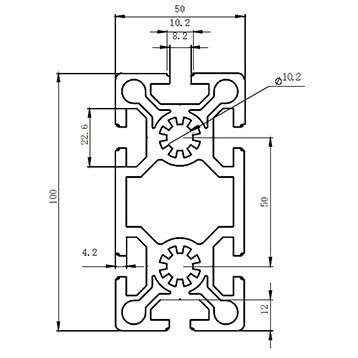

Profile 50100
Order NO：
QB-8-50100
Product Description：
Material :Alumi num ( 6063- T5 )
Weight: 5.55kg/m
Length : 6m
Mass of iner tia:
Ix: 191.09 cm4
Iy: 51.21 cm4
Section Modulus :
Zx :38.22 cm3
Zy :20.48cm3
